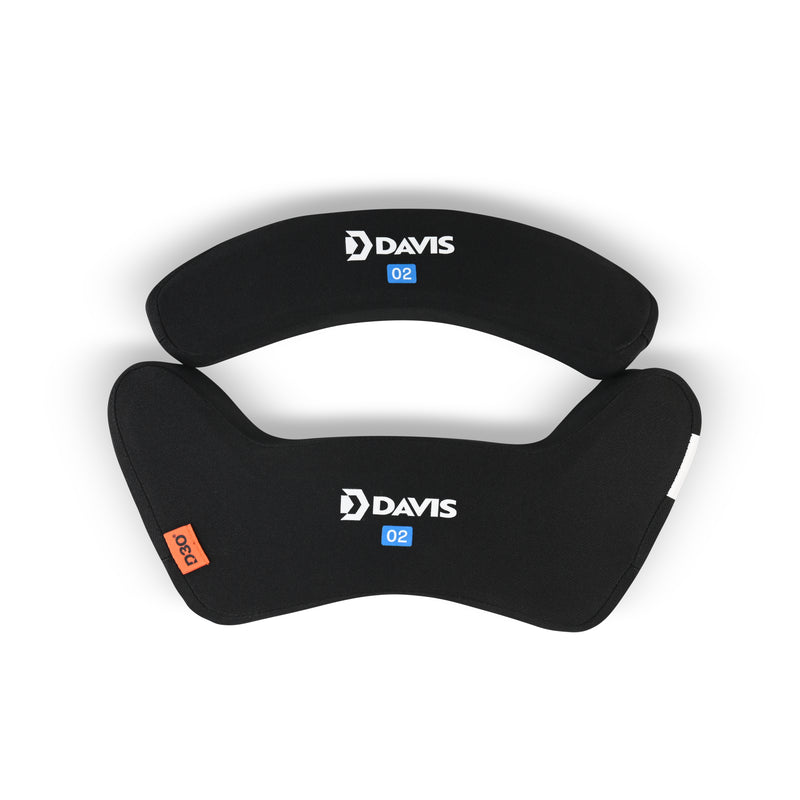

Davis D3O® Cloud4 Umpire Mask Pad Cores

Behind every pitch lies a physics problem most umpires never consider until it's too late. Most traditional mask pads operate on hope: two layers of foam, one stiff and one soft, attempting to manage forces they were never engineered to handle. When a high-velocity foul tip strikes your mask, the energy has microseconds to go somewhere. Conventional pads compress until they can't, then spike the remaining force straight into your skull. The Davis D3O® Cloud4 Pad Cores reimagine impact protection through advanced materials science: four precisely engineered layers working in sequence, each designed to contribute to progressive deceleration through controlled compression. The bottom pad features D3O® Aeromax where chin and cheek impacts are most common, while the top pad employs our proprietary Covalta™ chemically cross-linked foam for consistent forehead protection. Combined with progressive foam layers and a softer face feel, the Cloud4 delivers sophisticated impact management that performs reliably in any conditions above freezing.

The Physics of Progressive Protection

The Cloud4 employs a strategic four-layer system with different technologies optimized for different impact zones. The bottom pad, protecting chin and cheeks where most foul tips strike, features D3O® Aeromax—the non-Newtonian material that remains flexible during normal movement but stiffens instantly upon impact to spread forces across the pad surface. The top pad utilizes our proprietary Covalta™ chemically cross-linked foam, maintaining consistent protective properties across temperature extremes where traditional materials degrade. Both pads progress through high-density EVA for structural stability, medium-density PU foam for continued energy absorption, and finally soft EVA at the face interface—noticeably softer than firm VPU alternatives, addressing umpires who want serious protection without the hard-foam sensation against their skin. Each material operates in its optimal compression range, ensuring smooth force transmission with no single layer carrying the entire load until failure. The 1mm HDPE load distribution plate flexes under impact, transforming narrow 5-6mm pressure lines from mask bars into broader compression zones across the foam surface.

Modular Innovation: The Two-Part System

Unlike any mask padding on the market, the Shear3 pad core operates as part two of a unique two-part system. These pad cores contain the protective technology: the engineered layers that manage impact. They insert into Davis Pad Socks (sold separately), which provide the exterior fabric interface and frame attachment. When your pad sock wears out from seasons of use, you replace them, not the padding. Want different colors or a different material? Swap socks in minutes. Need moisture-wicking performance for summer or microfiber suede for early spring? Change socks, keep the same protection. The 1mm HDPE load distribution plate at the frame interface flexes under impact, transforming narrow 5-6mm pressure lines from mask bars into broader compression zones across the foam surface. The cores themselves are wrapped in premium tricot polyester for smooth insertion into pad socks, with the bottom pad at 35mm thickness and top pad at 30mm.

For Umpires Who Demand Protection with Comfort

Designed specifically for the Davis Mirage 12 XCG Umpire Mask Frame but compatible with the Davis Trace and various traditional wire-weld frames, the Cloud4 represents our commitment to diverse umpire preferences. At 5.3 ounces total weight, it's lighter than our Shear3 while delivering protection through a different material approach. The Cloud4 excels for umpires who prefer a softer face feel, work varying temperature conditions from early spring through late fall, or want reliable padding that won't turn rigid against their face in cold conditions. Where the Shear3 pad core uses temperature-sensitive viscoelastic materials throughout for maximum progressive compression above 65°F, the Cloud4 achieves protection through a different four-layer approach that delivers both impact management and consistent comfort across all temperatures.

Features

• Modular Two-Part System: Protective cores insert into replaceable Davis pad socks (required, sold separately), allowing you to refresh worn fabric or change colors without replacing expensive protective technology
• D3O® Aeromax Impact Layer: Non-Newtonian viscoelastic polymer remains flexible during normal movement then stiffens instantly upon impact, providing the first stage of energy absorption
• Four-Layer Progressive System: Multiple engineered polymer layers in each pad designed to work in sequence, each contributing to the deceleration timeline through progressive compression
• Dual Comfort Interface: Medium-density PU foam and soft EVA work together at face contact, providing noticeably softer feel than our pad cores with VPU alternatives while maintaining consistent comfort in any temperature
• Progressive Deceleration Engineering: Multiple thin layers each operating in optimal compression ranges extend impact duration by critical milliseconds, transforming dangerous force spikes into manageable energy dissipation
• HDPE Load Distribution Plate: Flexes under mask bar impact to transform narrow pressure lines into broader compression zones, spreading forces across more foam surface area for improved energy management
• All-Weather Performance: Functions reliably in all conditions above freezing, making it ideal for early spring through late fall schedules when temperatures vary widely

Specifications

• Required Component: Davis Pad Sock
• Operating Range: Air Temperature >32°F
• Construction: 4-layer laminated foam pad with 1mm HDPE load distribution plate
• Load Distribution: Semi-Flexible 1mm HDPE
• Layer One: Bottom pad: D3O® Aeromax, 220 kg/m³ density, Top pad: Covalta™, 215 kg/m³ density
• Layer Two: EVA, High Density
• Layer Three: PU, Medium Density
• Layer Four: EVA, Soft Density
• Dimensions: Bottom pad: 35mm, Top pad: 30mm
• Weight: 5.3 oz (0.33 lbs)
• Core Wrapping: 100% tricot polyester

What's Included

• Davis D3O® Cloud4 Umpire Mask Pad Cores

Installations & Assembly

The Cloud4 pad cores require Davis pad socks (sold separately) to function. The cores insert into the socks, which then attach to your mask frame.

• Insert each pad core fully into its corresponding Davis pad sock. The core is clearly marked to indicate which side faces your skin.
• Zip the pad sock closed and secure the zipper handle.
• Secure pads tightly to frame using the sock's velcro attachment straps.
